3.1 Using Software Templates

Software Templates in Backstage enable self-service for developers. Instead of copying boilerplate code or following lengthy setup guides, developers can use templates to scaffold new projects with best practices built in. It is one of the Core Features that is included by default.

This chapter will teach you how to create and use templates effectively.

Understanding Software Templates

Software Templates (also called Scaffolder Templates) allow you to:

• Standardize project setup: Ensure all projects follow organizational best practices
• Reduce onboarding time: New developers can create production-ready projects in minutes
• Enforce compliance: Build in security, monitoring, and governance from day one
• Accelerate development: Eliminate repetitive setup tasks

Task 3.1.1: Explore Existing Templates

Before creating your own template, let’s explore what’s available by default.

Run the default template

1. Navigate to http://localhost:3000/create or click on the Create navigation item
2. Click the choose button on the Example Node.js Template card to select the example template
3. Set any value for Name, your Owner and the Repository
4. Click on review to check your input
5. Create it by using the created button

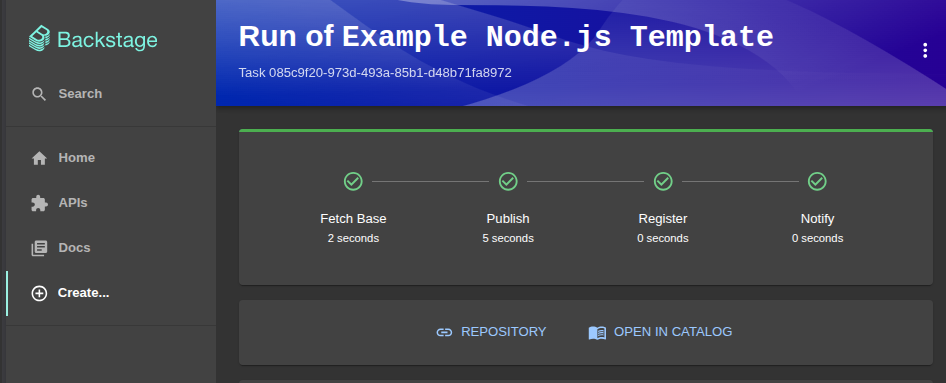

The successful scaffolding of a template looks like this:

Task 3.1.2: Create a Template with Multiple Steps

Let’s create a more sophisticated template that includes CI/CD setup and demonstrates advanced features like multiple parameter sections, conditional logic, and multiple fetch steps.

Step 1: Download the advanced template files

We need the Techlab Repo: Template Data files.

This curl command will get the files and extract it to the right location. Execute it from your app root (my-backstage-app):

curl -L https://backstage-techlab.puzzle.ch/static/backstage-data.zip -o backstage-data.zip \
  && unzip -o backstage-data.zip -d . \
  && mv backstage-data/templates/fullstack-app examples/ \
  && rm backstage-data.zip \
  && rm -rf ./backstage-data/

Alternatively you can download the ZIP file , extract it and copy / move the backstage-data/templates/fullstack-app folder into the examples folder of your Backstage app.

apiVersion: scaffolder.backstage.io/v1beta3
kind: Template
metadata:
  name: fullstack-app
  title: Full-Stack Application
  description: Create a complete full-stack application with React frontend, Node.js backend, and CI/CD
  tags:
    - recommended
    - fullstack
    - react
    - nodejs
spec:
  owner: team-a
  type: website

  parameters:
    - title: Application Information
      required:
        - name
        - description
      properties:
        name:
          title: Application Name
          type: string
          description: Unique name for the application
        description:
          title: Description
          type: string
          description: What does this application do?
        owner:
          title: Owner
          type: string
          ui:field: OwnerPicker
          ui:options:
            catalogFilter:
              kind: Group

    - title: Technology Choices
      properties:
        database:
          title: Database
          type: string
          description: Which database to use?
          enum:
            - postgresql
            - mysql
            - mongodb
          default: postgresql
        includeAuth:
          title: Include Authentication
          type: boolean
          description: Add authentication scaffolding?
          default: true

    - title: Repository Information
      required:
        - repoUrl
      properties:
        repoUrl:
          title: Repository Location
          type: string
          ui:field: RepoUrlPicker
          ui:options:
            allowedHosts:
              - github.com

  steps:
    - id: fetch-base
      name: Fetch Base Template
      action: fetch:template
      input:
        url: ./skeleton
        values:
          name: ${{ parameters.name }}
          description: ${{ parameters.description }}
          owner: ${{ parameters.owner }}
          database: ${{ parameters.database }}
          includeAuth: ${{ parameters.includeAuth }}
          repoUrl: ${{ parameters.repoUrl }}

    - id: publish
      name: Publish to GitHub
      action: publish:github
      input:
        description: ${{ parameters.description }}
        repoUrl: ${{ parameters.repoUrl }}
        defaultBranch: main
        repoVisibility: private
        deleteBranchOnMerge: true
        protectDefaultBranch: false

    - id: register
      name: Register Component
      action: catalog:register
      input:
        repoContentsUrl: ${{ steps.publish.output.repoContentsUrl }}
        catalogInfoPath: '/catalog-info.yaml'

  output:
    links:
      - title: Repository
        url: ${{ steps.publish.output.remoteUrl }}
      - title: Open in Catalog
        icon: catalog
        entityRef: ${{ steps.register.output.entityRef }}
      - title: CI/CD Pipeline
        url: ${{ steps.publish.output.remoteUrl | replace(".git", "") }}/actions

Key features of this template:

• Multiple parameter sections: Organized form with different categories (Application Info, Technology Choices, Repository)
• Conditional logic: Options like includeAuth and database that affect generated code
• Multiple fetch steps: Combines skeleton files, documentation, and workflow files
• CI/CD integration: Automatically creates GitHub Actions workflows

Analyse the skeleton structure:

The skeleton folder contains a more complex structure:

• frontend/ - React application with routing and state management
• backend/ - Node.js API with database integration
• docs/ - Documentation files
• .github/workflows/ - CI/CD pipeline configuration
• docker-compose.yml - Local development environment
• Conditional files based on ${{ values.includeAuth }} and ${{ values.database }}

Step 2: Register the template

Add the template location to your app-config.yaml:

catalog:
  locations:
  ...
    - type: file
      target: ../../examples/fullstack-app/template.yaml
      rules:
        - allow: [Template]

Wait for the catalog to refresh or restart your Backstage app and navigate to http://localhost:3000/create to see your advanced template!

Step 3: Test the template

1. Click on the CHOOSE button of the Full-Stack Application card
2. Fill in the form and experiment with different options:
   • Try different database choices (PostgreSQL, MySQL, MongoDB)
   • Toggle the authentication option
3. Create the application and explore the generated repository

Common Template Use Cases

Here are some popular template use cases:

• Microservices: Standard service template with logging, metrics, and health checks
• Frontend applications: React/Vue/Angular apps with routing and state management
• Documentation sites: TechDocs-enabled documentation repositories
• Infrastructure: Terraform modules or Kubernetes manifests
• Libraries: Shared code libraries with publishing pipelines
• Data pipelines: ETL jobs with scheduling and monitoring

Software Template development

Short overview for developing software templates .

Template Actions

Actions (also called steps) are the building blocks of a template’s steps section. Each action performs a specific task during scaffolding. Backstage ships with a set of built-in actions:

You can browse all available actions in your running Backstage instance at http://localhost:3000/create/actions . This page lists every installed action along with its input/output schema.

Custom actions can be implemented as Node.js functions and registered in the Scaffolder backend, allowing you to integrate with any internal tooling or API.

Template Editor

Backstage includes a built-in Template Editor accessible at http://localhost:3000/create/edit . It provides a live development environment for authoring templates directly in the browser:

• YAML editor: Write or paste your template.yaml on the left side
• Form preview: See the rendered input form update in real time on the right side
• Dry-run: Execute a template locally to inspect what files would be generated, without publishing anything

The Template Editor is the fastest way to iterate on a template — no restart or file deployment required.

Summary

In this chapter, you:

• ✅ Explored existing Backstage templates
• ✅ Created your first software template
• ✅ Built a template skeleton with variables
• ✅ Registered and used your template

Software Templates are one of Backstage’s most powerful features for improving developer productivity. By standardizing project creation, you reduce cognitive load and ensure consistency across your organization.

Next Steps

Now that you’ve completed this lab, you could:

1. Make your Software Template work: Do the Additional Labs where you configure GitHub Integration.
2. Explore other Core Features: Do the next lab and document your software with TechDocs.
